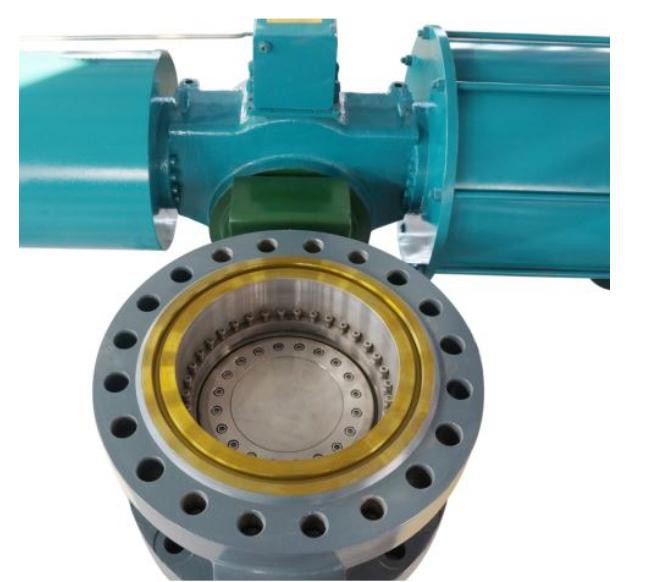

Válvula de mariposa de metal a metal

CARACTERÍSTICAS

● Metal-to-Metal seating with watertight seal

● Certified FIRE-SAFE

● Replaceable seats

● Zero leakage through the seats

● Working temperature up to 1652 degree F (900 degree )

ESPECIFICACIONES TÉCNICAS

● Design according to ASME B16.34 and API609

● Types: Elastomer seat optional

● Body material: Nodular cast iron; Alloy steels; Stainless steels; Duplex and Nickel-Bronze-Aluminum steels

● Pressure class: 150 to 1500

● Sizes: 3" to 120"

● Connections: Wafer; Lug; Flanges and Butt weld according to ASME B16.25 (BW)

BENEFICIOS

● Increases plant availability with saving of US millions per year, considering 2 (two) un-programmed plant stops per year, to install or provide equipment or instruments maintenance in the pipes.

● Increases plant energy efficiency by 1 percent .

● Provides substantial saving on initial investment

VENTAJAS

● Lifespan 100 (one hundred) times greater than conventional valves – Eliminates leaks and production losses caused by leaks in conventional butterfly valves with elastomer sealing.

● Replaces gate, globe and ball valves with economic advantages (40 percent cheaper) and weight (50 percent lighter). Ideal for low, medium and high temperature applications.
